Uniview 8MP Prime Tri-Guard Turret
8MP HD Intelligent Light and Audible Warning F ixed Eyeball Network Camera
IPC3638SS-ADF28(40)KMC-I1
Key Features
- High quality image with 8MP, 1/2.8″CMOS sensor
- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080)
@30/25fps - Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
- 130dB true WDR technology enables clear image in strong light scene
- Support red & blue warning light
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker
- Smart IR, up to 30m (98.4 ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
Technicial Specifications
| Camera | |
|---|---|
| Max Resolution | 8MP |
| Sensor | 1/2.8″ CMOS |
| Min. Illumination | Colour: 0.001 lux ( F1.0, AGC ON) 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N | >56dB |
| WDR | 130dB |
| Lens | |
|---|---|
| Focal Length | IPC368SSS-ADF28KMC-I1: 2.8 mm |
| IPC368SSS-ADF40KMC-I1: 4.0 mm | |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | IPC368SSS-ADF28KMC-I1: 106.5° |
| IPC368SSS-ADF40KMC-I1: 92° | |
| Field of View (V) | IPC368SSS-ADF28KMC-I1: 57.9° |
| IPC368SSS-ADF40KMC-I1: 51° | |
| Field of View (D) | IPC368SSS-ADF28KMC-I1: 132° |
| IPC368SSS-ADF40KMC-I1: 106° | |
| DORI | |
|---|---|
| DORI Distance (Lens) | IPC368SSS-ADF28KMC-I1: 2.8 mm |
| IPC368SSS-ADF40KMC-I1: 4.0 mm | |
| DORI Distance (Detect) | IPC368SSS-ADF28KMC-I1: 86.9 m (285.1 ft) |
| IPC368SSS-ADF40KMC-I1: 124.1 m (407.2 ft) | |
| DORI Distance (Observe) | IPC368SSS-ADF28KMC-I1: 34.8 m (114.2 ft) |
| IPC368SSS-ADF40KMC-I1: 49.7 m (163.1 ft) | |
| DORI Distance (Recognize) | IPC368SSS-ADF28KMC-I1: 17.4 m (57.1 ft) |
| IPC368SSS-ADF40KMC-I1: 24.8 m (81.4 ft) | |
| DORI Distance (Identify) | IPC368SSS-ADF28KMC-I1: 8.7 m (28.5 ft) |
| IPC368SSS-ADF40KMC-I1: 12.4 m (40.7 ft) | |
| Illuminator | |
|---|---|
| Supplemental Light | Dual Light |
| Illumination Distance (IR) | IR 30 m, Warm Light 30 m |
| Illumination Distance (Warm Light) | IR 30 m, Warm Light 30 m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
|---|---|
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840×2160), Max 30fps; 5MP (3072×1728), Max 30fps; 4MP (2560×1440), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps Sub Stream: 720P (1280×720), Max 30fps; D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps Third Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple Streams |
| Image | |
|---|---|
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support (Only WDR) |
| Flip | Normal; Vertical; Horizontal; 180°; 90° Clockwise; 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | |
|---|---|
| Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (supports false alarm filtering and classification of human, non-motor vehicle, and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Supports People Flow Counting and Crowd Density Monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
|---|---|
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output |
| Audio | |
|---|---|
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 KHz |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | |
|---|---|
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user, and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link; UNV-Link Pro; EZStation |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57 and above, Firefox 58 and above, Edge 16 and above |
| Interface | |
|---|---|
| Audio I/O | 1 Input: impedance 35k Ω; amplitude 2V [p-p]; 1 Output: impedance 600 Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
|---|---|
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
|---|---|
| Power | DC 12V ±25%, PoE (IEEE 802.3af) |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Ø129 × 118 mm (Ø5.1″ × 4.7″) (Ø × H) |
| Weight | 0.69 kg (1.53 lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Web Client Language |
20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, |

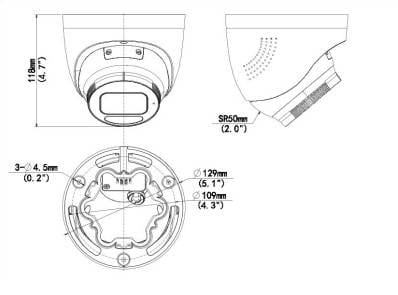

Dimensions
