Uniview 6MP Prime IP Turret
6MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera
IPC3616SS-ADF28K-I1
Key Features
- High quality image with 6MP, 1/2.7″CMOS sensor
- 6MP (3072*2048)@ 20/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,
- accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Auto Scene Match (ASM)（Only WDR）
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 130dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
Technicial Specifications
| Camera | |
|---|---|
| Sensor | 1/2.7″, 6.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° |
| WDR | 130 dB |
| S/N | >56 dB |
| Lens | |
|---|---|
| Lens | 2.8 mm @ F1.6 |
| Iris | Fixed |
| Field of View (H) | 107.2° |
| Field of View (V) | 56.39° |
| Field of View (D) | 110.11° |
| DORI | |
|---|---|
| DORI Distance | 2.8 mm: Detect 63.0 m; Observe 25.2 m; Recognize 12.6 m; Identify 6.3 m |
| Illuminator | |
|---|---|
| IR Range | Up to 40m (131 ft) IR range |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
|---|---|
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (3840×2160), Max 30fps; 5MP (3072×1728), Max 30fps; 4MP (2560×1440), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps Sub Stream: 720P (1280×720), Max 30fps; D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps Third Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple Streams |
| Image | |
|---|---|
| Auto Scene Match (ASM) | Support (Only WDR) |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90° Clockwise/90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | BLC Support |
| Defog | Digital Defog |
| Intelligent | |
|---|---|
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
|---|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Audio | |
|---|---|
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 KHz |
| Storage | |
|---|---|
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | |
|---|---|
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |
| Interface | |
|---|---|
| Audio I/O | N/A |
| Alarm I/O | N/A |
| RS485 | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
|---|---|
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
|---|---|
| Power | DC 12V ±25%, PoE (IEEE 802.3af) Power consumption: Max 6.5W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions (Ø x H) | Ø129 × 110 mm (Ø5.1″ × 4.3″) |
| Weight | 0.43 kg (0.95 lb) |
| Material | Metal + Plastic |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |

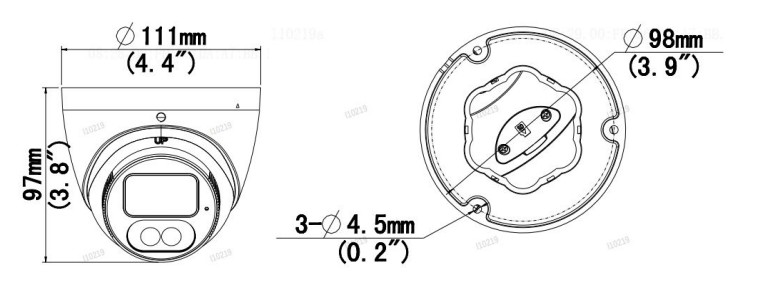

Dimensions
Note
Zhejiang Uniview Technologies Co., Ltd.
Building No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China，310051
Email: overseasbusiness@uniview.com; globalsupport@uniview.com
http://www.uniview.com
©2023 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
