Hanwha 5M Network IR Flateye Camera
QNE-8011R/8021R
Key Features
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm/4mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m
- LDC, PoE

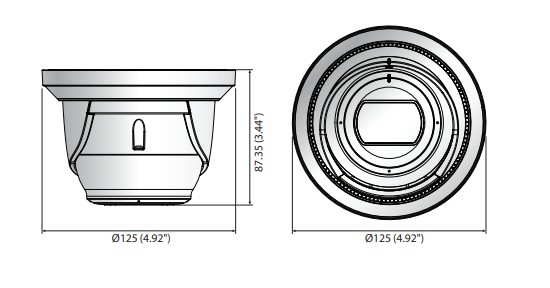

Dimensions

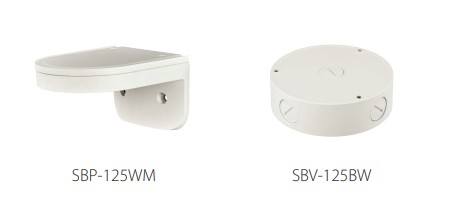

Accessories (Optional)
Technicial Specifications
| Video | |
|---|---|
| Model | QNE-8011R / QNE-8021R |
| Imaging Device | 1/2.8″ 5MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Min. Illumination | QNE-8011R: Color: 0.15Lux (F2.0, 1/30sec), B/W: 0Lux (IR LED on) |
| QNE-8021R: Color: 0.15Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on) | |
| Lens | |
|---|---|
| Focal Length (Zoom Ratio) | QNE-8011R: 2.8mm fixed focal QNE-8021R: 4.0mm fixed focal |
| Max. Aperture Ratio | QNE-8011R: F2.0 QNE-8021R: F1.6 |
| Angular Field of View | QNE-8011R: H:104.4° / V:76.7° / D:136.1° QNE-8021R: H:80.1° / V:58.0° / D:105.8° |
| Focus Control | Fixed |
| DORI | |
|---|---|
|
Pan / Tilt / Rotate Range |
0°~350° / 0°~75° / 0°~360° |
| OPERATIONAL | |
|---|---|
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5–1/12,000 sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| NETWORK | |
|---|---|
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps (25fps@60Hz/50Hz) / MJPEG: Max. 15fps/12fps (60Hz/50Hz) |
| Video Streaming | WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR / MJPEG: VBR |
| Streaming Method | Unicast / Multicast |
| Protocol | Multiple streaming (Up to 3 profiles) IPv4, IPv6, TCP/IP, UDP, RTP(UDP), RTP(TCP), RTSP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL), login authentication, Digest login authentication, IP address filtering, User access log |
| Edge Storage | Micro SD/SDHC/SDXC slot (Max. 128GB) |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer (QNE-8011R) | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Web Viewer (QNE-8021R) | Same as QNE-8011R |
| ENVIRONMENTAL | |
|---|---|
| Model | QNE-8011R / QNE-8021R |
| Operating Temperature / Humidity | -30°C to +55°C (-22°F to +131°F) / Less than 90% RH *Start-up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C to +60°C (-22°F to +140°F) / Less than 90% RH |
| Certification | IP67, IK10 |
| ELECTRICAL | |
|---|---|
| Model | QNE-8011R / QNE-8021R |
| Input Voltage | PoE (IEEE802.3af, Class 3) |
| Power Consumption | PoE: Max 7.4W, typical 5.5W |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø125×67.3mm (Ø4.92×3.44″), 645g (1.422 lb) |
Note
* The lastest product information / specification can be found at hanwha-security.com
* Design and specifications are subject to change without notice.
* Wisenet is the proprietary brand of Hanwha Techwin.
