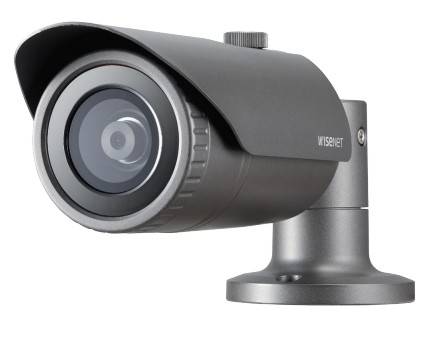

Hanwha 5M Network IR Bullet Camera
QNO-8010R/8020R/8030R
Key Features
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm/4mm/6mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m/25m/30m
- IP66, IK10, PoE

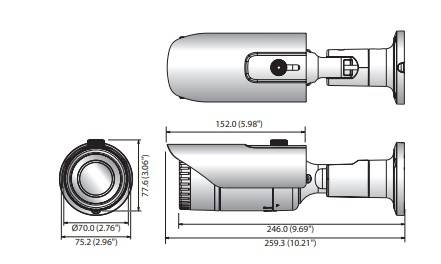

Dimension
Accessory
SBO-100B1
SBP-302PM
Technicial Specifications
| VIDEO | |
|---|---|
| Model | QNO-8010R / QNO-8020R / QNO-8030R |
| Imaging Device | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Min. Illumination | QNO-8010R: 0.15Lux (F2.0, 1/30sec), 0Lux (IR on) QNO-8020R: 0.15Lux (F1.6, 1/30sec), 0Lux (IR on) QNO-8030R: 0.15Lux (F2.0, 1/30sec), 0Lux (IR on) |
|
Video Out |
CVBS: 1.0Vp-p / 75Ω composite, 720×480(N), 720×576(P) |
| LENS | |
|
Max. Aperture Ratio |
QNO-8010R: F2.0 QNO-8020R: F1.6 QNO-8030R: F2.0 |
| Angular Field of View | QNO-8010R: H: 104.7° / V: 76.5° / D: 136.0° QNO-8020R: H: 79.8° / V: 58.1° / D: 105.9° QNO-8030R: H: 49.4° / V: 37.4° / D: 61.0° |
| LENS | |
| Focus Control | Fixed |
|
PAN / TILT / ROTATE |
|
|
Pan/Tilt/Rotate Range |
0°~350° / 0°~67° / 0°~355° |
|
OPERATIONAL |
|
|
IR Viewable Length |
QNO-8010R: 20m (65.62ft) QNO-8020R: 25m (82.02ft) QNO-8030R: 30m (98.42ft) |
|
Camera Title |
Displayed up to 85 characters |
|
Day & Night |
Auto (ICR) |
|
Backlight Compensation |
BLC, WDR, SSDR |
|
Wide Dynamic Range |
120dB |
|
Digital Noise Reduction |
SSNR |
|
Motion Detection |
4ea, polygonal zones |
|
Privacy Masking |
6ea, rectangular zones |
|
Gain Contro |
Low / Middle / High |
|
White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
|
LDC |
Support |
|
Electronic Shutter Speed |
Minimum / Maximum / Anti icker (1/5~1/12,000sec) |
|
Video Rotation |
Flip, Mirror, Hallway view(90˚/270˚) |
|
Analytics |
Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
|
Alarm I/O |
Input 1ea / Output 1ea |
|
Alarm Triggers |
Analytics, Network disconnect, Alarm input |
|
Alarm events |
File upload via FTP and e-mail, Noti cation via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output |
| NETWORK | |
|---|---|
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Max. Framerate | H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz) / MJPEG : Max. 15fps/12fps (60Hz/50Hz) |
| Smart Codec | WiseStream II |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control / MJPEG : Quality level control |
| Bitrate Control | H.264/H.265 : CBR or VBR / MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast / Multiple streaming (Up to 3 pro les) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address ltering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Pro le S/G/T SUNAPI (HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14 Recommended Browser : Google Chrome Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| ELECTRICAL | |
|---|---|
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE : Max 7.5W, typical 6.1W |
| MECHANICAL | |
|---|---|
| Color / Materia | Dark grey / Aluminum |
| Product dimensions / weight | Ø70.0 x 246.0mm (Ø4.33 x 3.39″), 680g (1.499 lb) |
Note
* The lastest product information / speci cation can be found at hanwha-security.com
* Design and speci cations are subject to change without notice.
* Wisenet is the proprietary brand of Hanwha Techwin.
